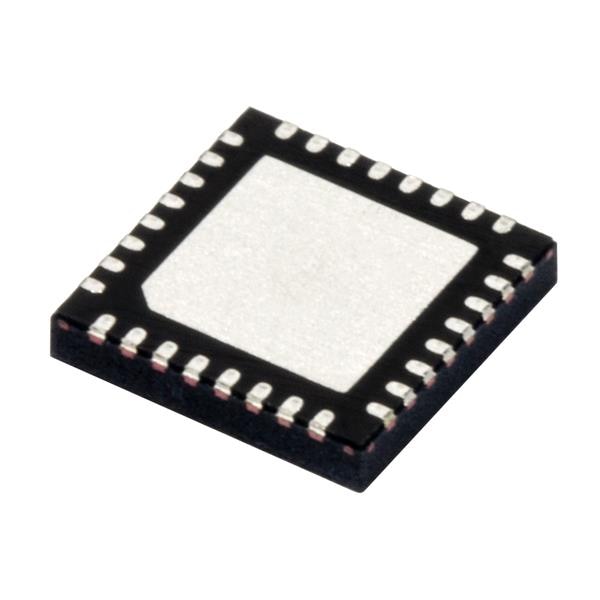

Analog Devices HMC1099PM5E Power Amplifiers 0.0-1GHz 12W PA

Gain: 18.5 dB

Technology: GaN

Unit Weight: 5.844 g

Mounting Style: SMD/SMT

Test Frequency: 700 MHz to 1.1 GHz

Development Kit: EV1HMC1099LP5D

Input Return Loss: 12 dB

NF - Noise Figure: 5 dB

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Operating Frequency: 10 MHz to 1.1 GHz

Pd - Power Dissipation: 12.5 W

Operating Supply Current: 100 mA

Operating Supply Voltage: 28 V

OIP3 - Third Order Intercept: 47 dBm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
