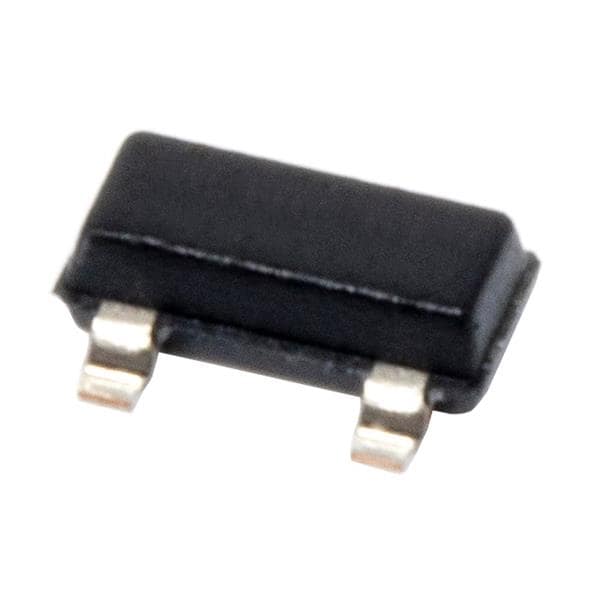

Analog Devices AD1580ARTZ-REEL7 Voltage References IC, 1.2V MICROPOWER REF

Width: 1.3 mm

Height: 1.02 mm (Max)

Length: 2.9 mm

Accuracy: 6 mV

Topology: Shunt References

Unit Weight: 8 mg

Mounting Style: SMD/SMT

Output Current: 10 mA

Output Voltage: 1.225 V

Reference Type: Shunt Precision References

Load Regulation: 6 mV

Initial Accuracy: 0.1 %

Shunt Current - Max: 10 mA

Shunt Current - Min: 50 uA

Description/Function: 1.2 V micropower, precision shunt voltage reference

Maximum Output Voltage: 1.235 V

Temperature Coefficient: 50 PPM / C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
