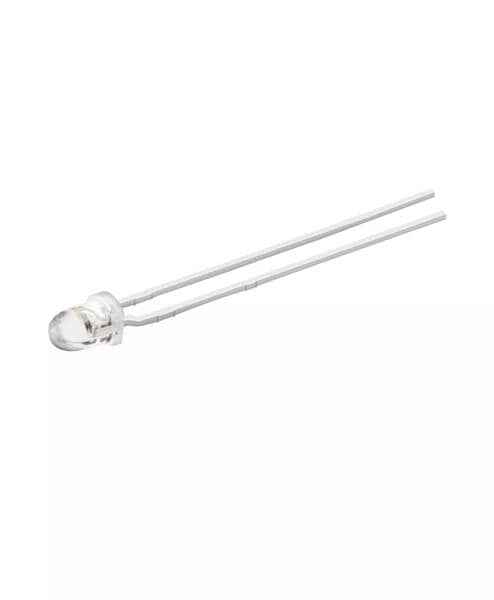

ams OSRAM SFH 309 FA-4/5 Silicon NPN Phototransistor PHOTOTRANSISTOR

Width: 4 mm

Height: 5.2 mm

Length: 4 mm

Fall Time: 8 us

Rise Time: 8 us

Wavelength: 900 nm

Unit Weight: 200 mg

Dark Current: 15 mA

Light Current: 3.2 mA

Qualification: AEC-Q100

Mounting Style: Through Hole

Peak Wavelength: 900 nm

Lens Color/Style: Black

Pd - Power Dissipation: 165 mW

Half Intensity Angle Degrees: 12 deg

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C

Maximum On-State Collector Current: 15 mA

Collector- Emitter Voltage VCEO Max: 35 V

Collector-Emitter Breakdown Voltage: 35 V

Collector-Emitter Saturation Voltage: 200 mV
