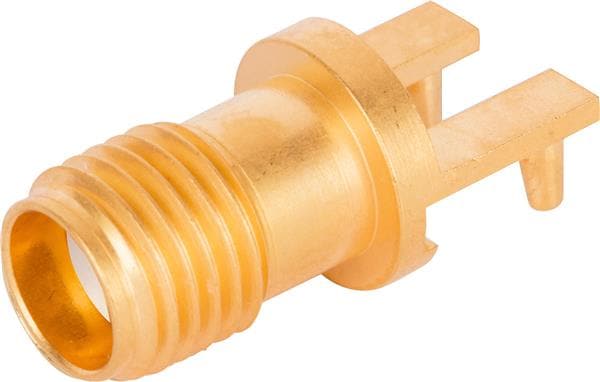

Amphenol SV Microwave 2921-00037 PCB Connectors SMA Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness"
Gender: Jack (Socket)
Polarity: Standard
Frequency: 18 GHz
Impedance: 50 Ohms
RF Series: SMA
Body Style: Straight
Body Finish: Gold
Orientation: Straight
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Type: PCB
Mounting Style: Edge Launch
Board Thickness: 0.062 in
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 18 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
