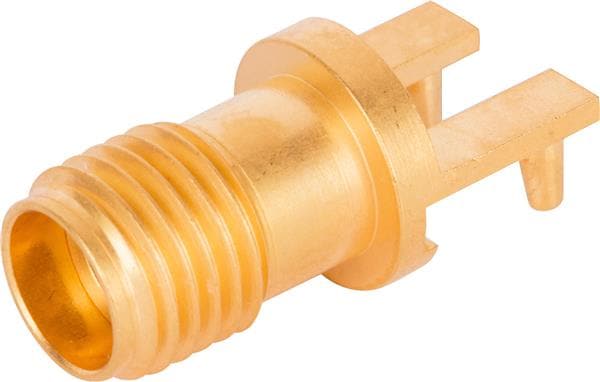

Amphenol SV Microwave 1521-00005 PCB Connectors 2.92mm Female PCB Edge Lock Connector, 2 Leg, .062" PCB Thickness"

Gender: Jack (Socket)

Polarity: Standard

Frequency: 40 GHz

Impedance: 50 Ohms

RF Series: 2.92 mm

Body Style: Edge Mount

Body Finish: Brass

Orientation: Straight

REACH - SVHC: Details

Body Material: Stainless Steel

Mating Cycles: 500 Cycles

Mounting Type: PCB

Mounting Style: Edge Launch

Board Thickness: 0.062 in

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 40 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
