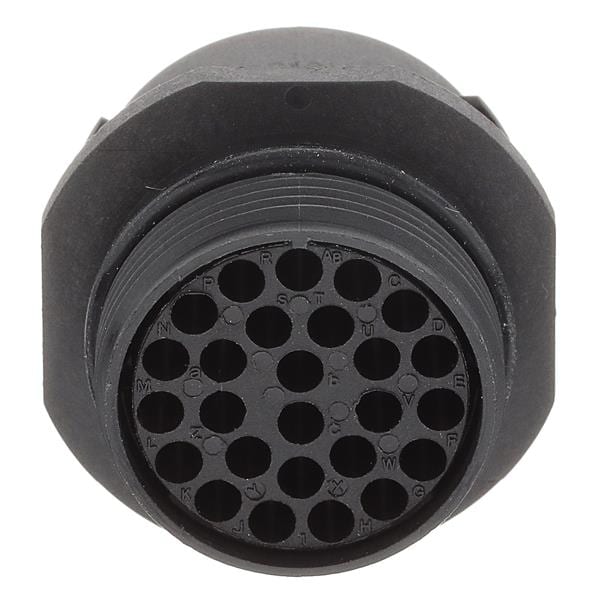

Amphenol SINE Systems RTS1BS16N26SHEC03 Connectors ECOMATE AQUARIUS CONNECTORS

Length: 41.5 mm

Diameter: 30 mm

IP Rating: IP67, IP69k

Shell Size: 16

Wire Gauge: 28 AWG to 20 AWG

Shell Style: Receptacle

Mating Style: Bayonet

Accessory Type: Inline Receptacle w Endcap

Contact Gender: Socket (Female)

Current Rating: 5 A, 7.5 A

Housing Gender: Female

Mounting Angle: Straight

Mounting Style: Cable

Shell Material: Thermoplastic (TP)

Voltage Rating: 250 V

Housing Material: Thermoplastic

Termination Style: Crimp

Flammability Rating: UL 94 V-0

Number of Positions: 26 Position
