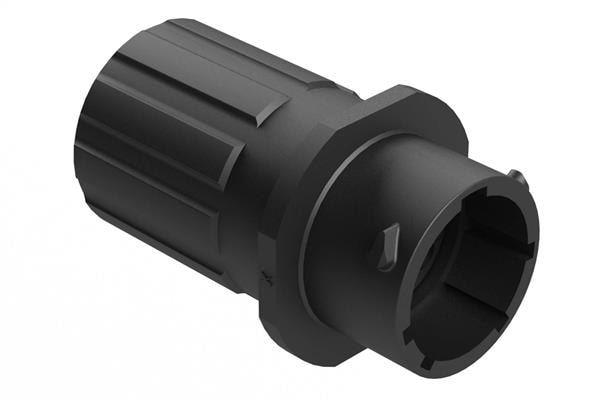

Amphenol SINE Systems RTS1BS12N8PHEC03R Receptacles Receptacle, Inline, 8 Position, Male, Shell Size 12, Silicone Seal and End Cap with Reduced Individual Wire Sealing

IP Rating: IP67, IP69K

Shell Size: 12

Wire Gauge: 24 AWG to 14 AWG

Shell Style: In-Line

Mating Style: Bayonet

Mating Cycles: 500 Cycles

Contact Gender: Pin (Male)

Current Rating: 13 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Free Hanging

Shell Material: Thermoplastic (TP)

Voltage Rating: 500 V

Housing Material: Thermoplastic (TP)

Termination Style: Crimp

Insert Arrangement: 12-8

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position
