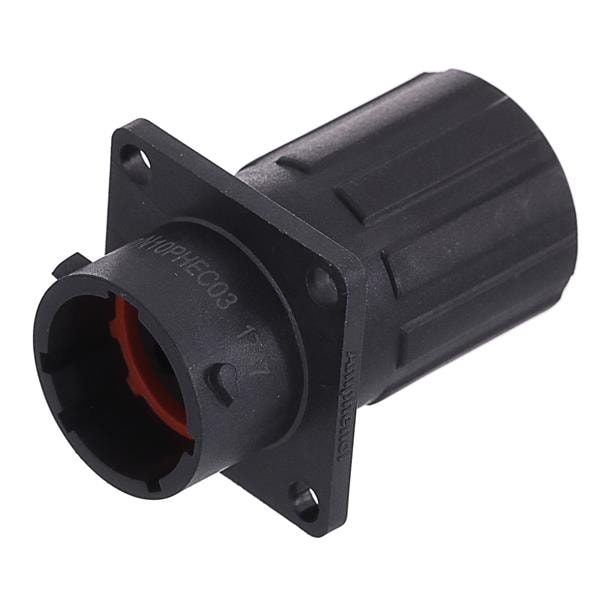

Amphenol SINE Systems RTS012N10PHEC03 Connectors RCP SQ FL 10POS SZ 12 PIN SEAL

Length: 41.45 mm

Diameter: 19 mm

IP Rating: IP67, IP69k

Shell Size: 12

Wire Gauge: 30 AWG to 20 AWG

Shell Style: Square Flange

Accessory Type: Square Flange Receptacle

Contact Gender: Pin (Male)

Current Rating: 5 A, 7.5 A

Housing Gender: Male

Mounting Angle: Straight

Mounting Style: Panel

Shell Material: Thermoplastic (TP)

Voltage Rating: 250 V

Housing Material: Thermoplastic

Termination Style: Crimp

Insert Arrangement: 12-10

Flammability Rating: UL 94 V-0

Number of Positions: 10 Position
