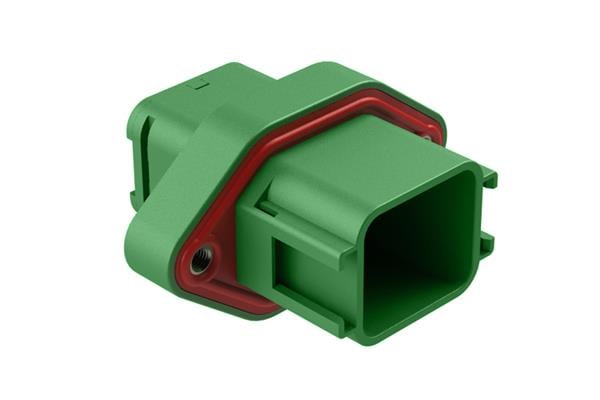

Color: Green
Gender: Receptacle (RP - Male)
Insulation: Insulated
Contact Type: Pin
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 13 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Number of Rows: 3 Row
Wire Gauge Max: 16 AWG
Wire Gauge Min: 22 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 22 AWG to 16 AWG
Ingress Protection: IP67, IP69K
Mating Part Number: ATV06-18C
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
