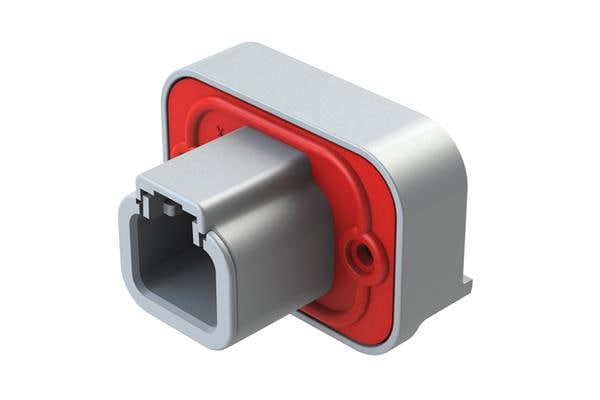

Color: Gray
Pitch: 6.7 mm (0.264 in)
Gender: Receptacle (RP - Male)
Length: 44 mm
Insulation: Insulated
Contact Type: Pin
Current Rating: 25 A
Mounting Angle: Right Angle
Mounting Style: Mounting Flange
Number of Rows: 1 Row
Voltage Rating: 250 V
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Termination Style: Solder Pin
Ingress Protection: IP67
Mating Part Number: ATP06-2S
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
