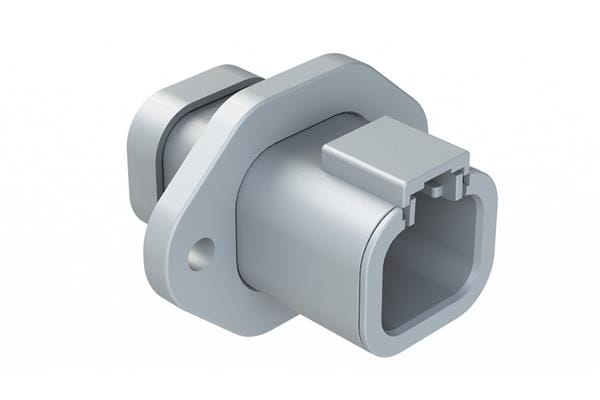

Color: Gray
Gender: Receptacle (RP - Male)
Insulation: Insulated
Contact Type: Pin
Mating Gender: Plug
Contact Gender: Without Pin Contacts
Current Rating: 25 A
Mounting Angle: Straight
Mounting Style: Mounting Flange
Number of Rows: 2 Row
Wire Gauge Max: 10 AWG
Wire Gauge Min: 14 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 10 AWG to 14 AWG
Mating Part Number: ATP06-4S
Number of Positions: 4 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
