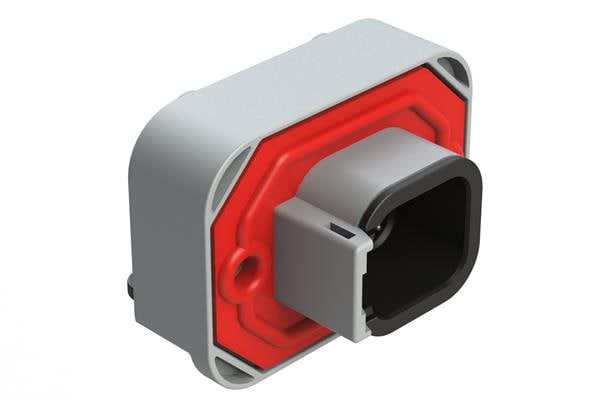

Color: Gray
Pitch: 4.2 mm (0.165 in)
Width: 33.1 mm
Gender: Receptacle (RP - Male)
Height: 39.7 mm
Length: 44.9 mm
Insulation: Insulated
Row Spacing: 6 mm
Contact Type: Pin
Current Rating: 7.5 A
Mounting Angle: Right Angle
Mounting Style: Mounting Flange
Number of Rows: 2 Row
Voltage Rating: 250 V
Wire Gauge Max: 16 AWG
Wire Gauge Min: 22 AWG
Contact Plating: Tin
Contact Material: Copper Alloy
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 22 AWG to 16 AWG
Termination Style: Solder Pin
Ingress Protection: IP67
Mating Part Number: ATM06-6S
Flammability Rating: UL 94 V-0
Number of Positions: 6 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
