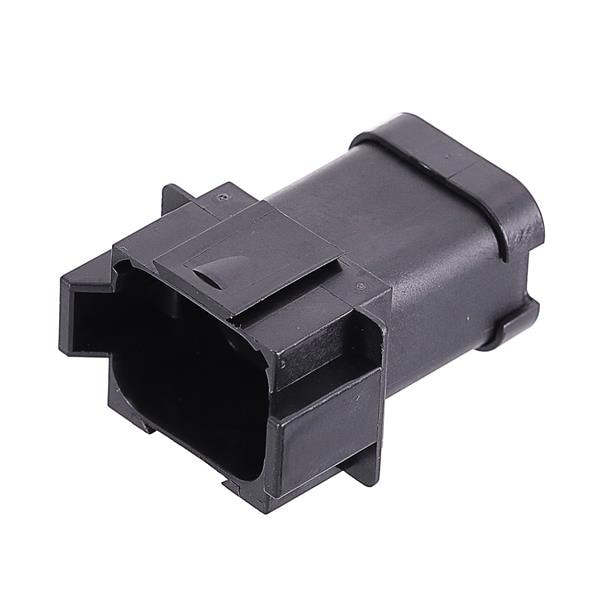

Amphenol SINE Systems AT04-08PA-ECBLK Connectors 8 Pin Recept. Key Pos. A w/End Cap BLK

Color: Black

Width: 36.5 mm

Gender: Receptacle (Female)

Height: 23.7 mm

Length: 45.7 mm

Dimensions: 45.7 mm x 36.5 mm x 23.7 mm

Insulation: Insulated

Mating Gender: Plug

Current Rating: 13 A

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Wire Gauge Max: 14 AWG

Wire Gauge Min: 20 AWG

Housing Material: Thermoplastic (TP)

Wire Gauge Range: 14 AWG to 20 AWG

Termination Style: Crimp

Ingress Protection: IP67

Mating Part Number: AT06-08SXx

Number of Positions: 8 Position

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 55 C
