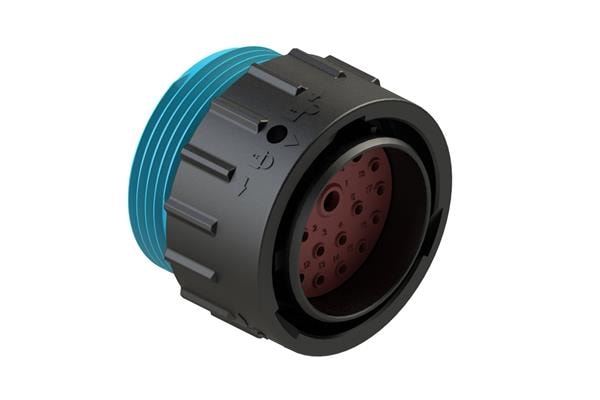

Color: Black
Gender: Plug (Male)
Length: 38.3 mm
Insulation: Insulated
Contact Gender: Pin (Male)
Current Rating: 25 A
Mounting Angle: Straight
Mounting Style: Cable Mount / Free Hanging
Wire Gauge Max: 8 AWG, 10 AWG, 14 AWG
Wire Gauge Min: 10 AWG, 14 AWG, 20 AWG
Housing Material: Thermoplastic (TP)
Wire Gauge Range: 8 AWG to 10 AWG, 10 AWG to 14 AWG, 14 AWG to 20 AWG
Termination Style: Crimp
Mating Part Number: AHDP04-24-18S
Flammability Rating: UL 94 V-0
Number of Positions: 18 Position
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 55 C
