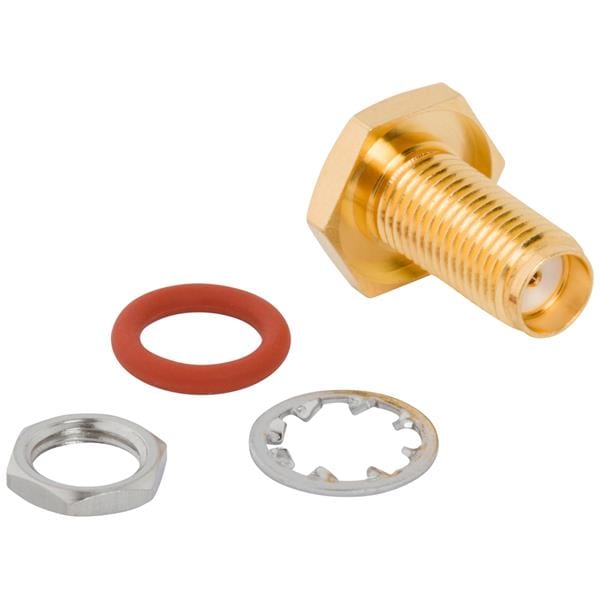

Amphenol RF 901-10745 Connectors SMA Str Solder Jk RG -405 0.86 Bkhd 50 O

Gender: Jack (Socket)

Polarity: Standard

Frequency: DC to 26.5 GHz

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Style: Bulkhead

Cable Type: RG-405, 0.086 in. Semi-Rigid

Body Finish: Gold

Orientation: Straight

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 26.5 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
