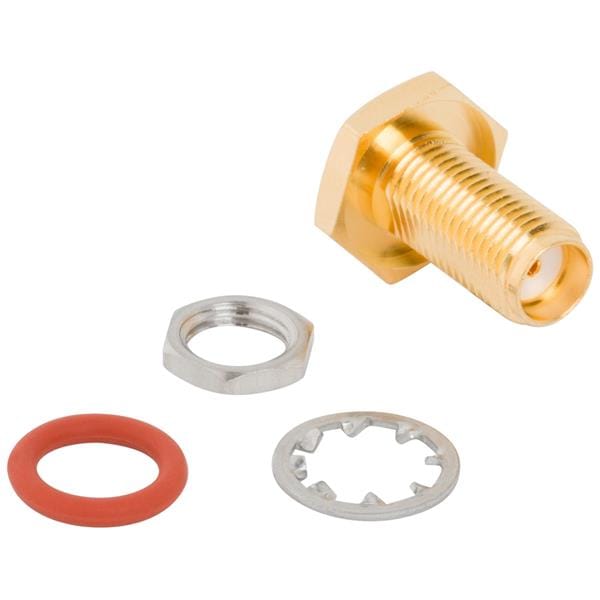

Amphenol RF 901-10744 Connectors SMA Str Solder Jk RG -402 0.141 Bkhd 50
Gender: Jack (Socket)
Polarity: Standard
Frequency: DC to 26.5 GHz
IP Rating: IP67
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMA
Body Style: Bulkhead
Cable Type: RG-402, 0.141 Semi-Rigid
Body Finish: Gold
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 26.5 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Threaded
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
