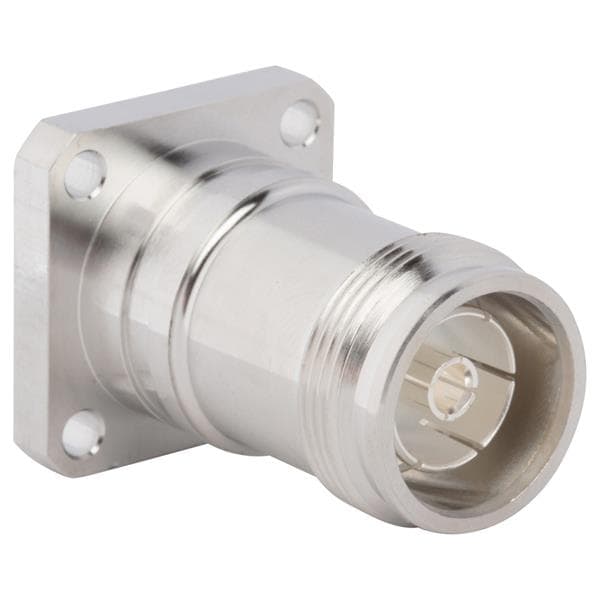

Amphenol RF 431-116J-52S Connectors 4-Hole Flange Recpt Solder Cup 50 Ohm

Gender: Jack (Socket)

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: 4.3-10

Body Style: Flange

Body Finish: Bronze

Orientation: Straight

Unit Weight: 59.370 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 100 Cycles

Mounting Style: Flange Mount

Voltage Rating: 2.5 kV

Contact Plating: Silver

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Solder Cup

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 55 C
