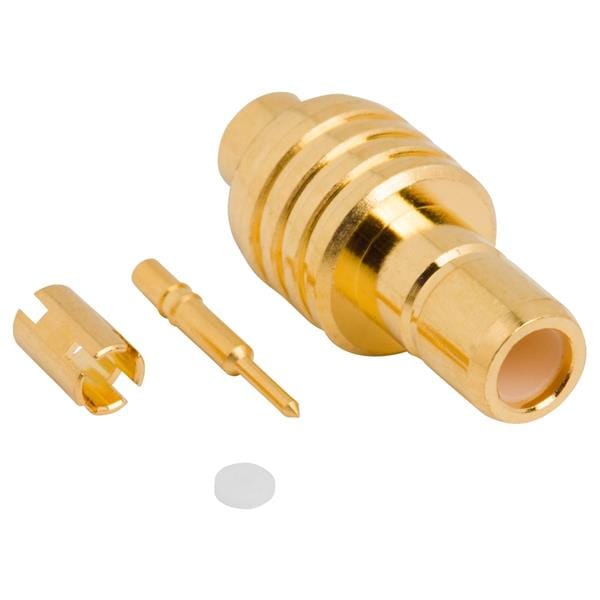

Amphenol RF 142225 Connectors RF Connector SMB Straight Solder Jack 0.047-inch Conformable 50 Ohm
ManufacturerAmphenol RF(View more products from this manufacturer)
Model142225
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Impedance: 50 Ohms
RF Series: SMB
Body Style: Right Angle
Cable Type: 0.047 in. Semi-Rigid
Body Finish: Gold
Orientation: Straight
Unit Weight: 3.896 g
Body Material: Brass
Mating Cycles: 500
Mounting Style: Cable Mount / Free Hanging
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 4 GHz
Termination Style: Crimp
Coupling Mechanism: Push On
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
