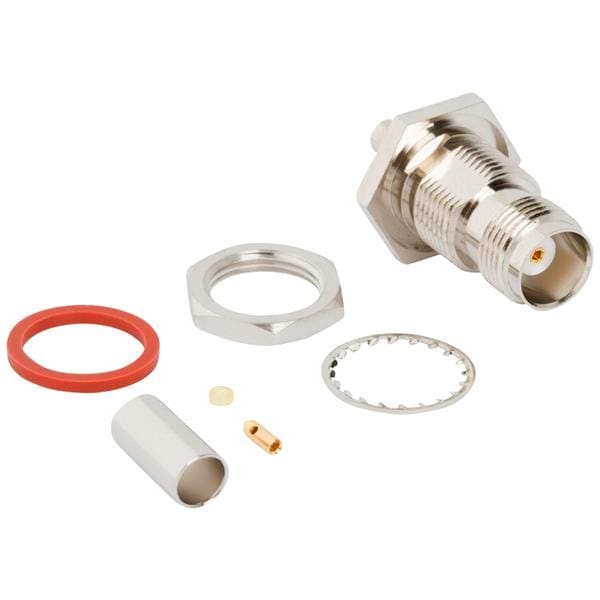

Amphenol RF 031-6922 Connectors RF Connector TNC StraightCrimpJck

Gender: Jack (Socket)

Polarity: Standard

IP Rating: IP67

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: TNC

Body Style: Straight

Cable Type: RG-55, 142, 223, 400, Belden 83242, Times SF-142B

Body Finish: Nickel

Orientation: Straight

Unit Weight: 20 g

Body Material: Brass

Mating Cycles: 500 Cycle

Mounting Style: Bulkhead - Rear Mount

Contact Plating: Gold

Contact Material: Phosphor Bronze

Maximum Frequency: 11 GHz

Minimum Frequency: DC

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 60 C
