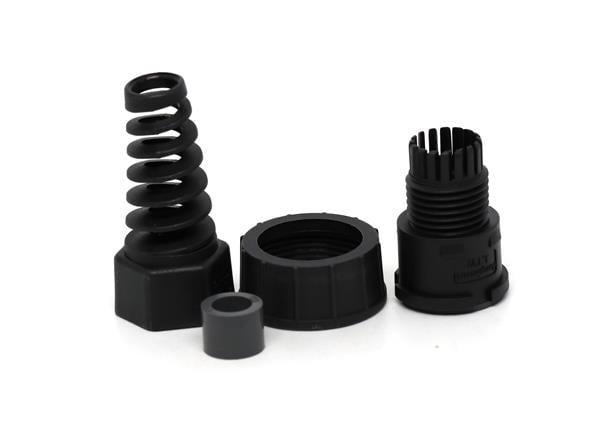

Amphenol LTW RDP-00AMMA-SLM7001 Field RJ, Large Size, Plastic, 1.5A, Straight, Screw Thread, Compled, Field Installable, F4.5 - F6.5mm, IP67 Mated

Gender: Plug (Male)

IP Rating: IP67

Shielding: Unshielded

USOC Codes: RJ45

Application: 1000 Base-T

Configuration: 1x1

Tab Direction: User Selectable

Current Rating: 1.5 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Voltage Rating: 44 VDC to 57 VDC

Number of Ports: 1 Port

Locking Mechanism: Three Points Lock

Number of Contacts: 8 Contact

Flammability Rating: UL 94V-0

Number of Positions: 8 Position

Insulation Resistance: 500 MOhms

Operating Temperature Range: - 40 C to + 105 C

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
