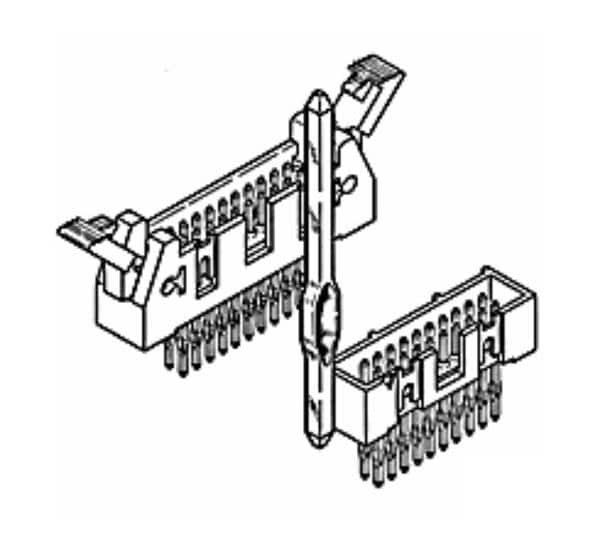

Amphenol FCI 10080054-073LF Shrouded 20P DR EJCT LTCH HDR GOLD OVER NICKEL

Pitch: 2.54 mm (0.1 in)

Application: Wire-to-Board

Row Spacing: 2.54 mm (0.1 in)

Housing Color: Blue

Contact Gender: Pin (Male)

Current Rating: 3 A

Mounting Angle: Straight

Mounting Style: Mounting Flange

Number of Rows: 2 Row

Voltage Rating: 1.5 kV

Contact Plating: Gold

Contact Material: Phosphor Bronze

Housing Material: Thermoplastic Polyester

Termination Style: Press Fit

Mating Post Length: 5.94 mm (0.234 in)

Flammability Rating: UL 94 V-0

Number of Positions: 20 Position

Insulation Resistance: 10 GOhms

Termination Post Length: 4.06 mm (0.16 in)

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 65 C
