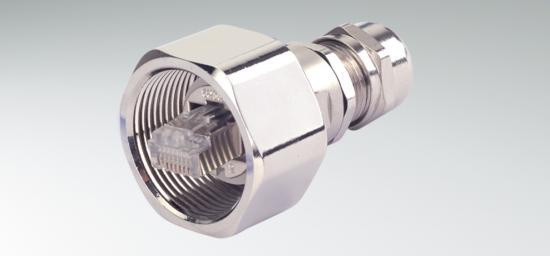

Amphenol CONEC 17-101864 Modular RJ45-IP67 M28THRPLKT MTLCat5e 32mm HexCu

Gender: Jack (Female)

IP Rating: IP67

Shielding: Shielded

USOC Codes: RJ45

Unit Weight: 92.800 g

Mounting Type: Panel

Current Rating: 1.2 A

Mounting Angle: Straight

Mounting Style: Panel Mount

Voltage Rating: 100 V

Contact Plating: Gold

Contact Material: Phosphor Bronze

Locking Mechanism: Bayonet

Termination Style: Solder

Coupling Mechanism: Threaded

Flammability Rating: UL 94 V-0

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
