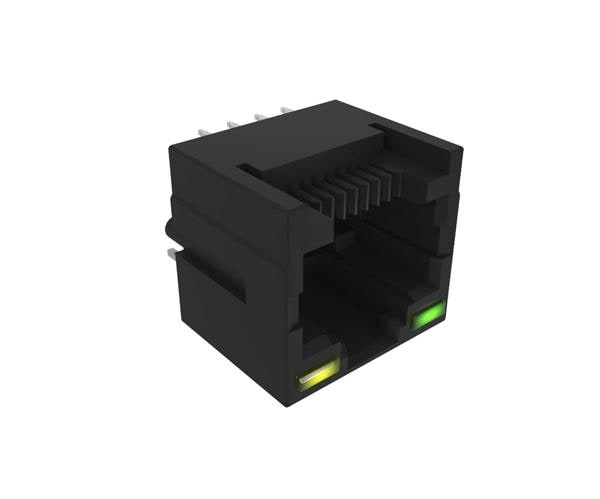

Amphenol Commercial Products RJE881880440 Low-Profile EMI-Quiet Modular Jack Connector Low Profile Vertical RJ45 Through Hole Mount w/ LED w/o Shield 50u" Plating

Gender: Jack (Female)

IP Rating: IP20

Shielding: Unshielded

USOC Codes: RJ45

Application: Consumer Goods - Copiers, Laptops, PCs, Printers, Security Systems, Set Top Boxes and Video Game Systems, Data - Hubs, Routers, Servers, Storage and Switches, Industrial and Instrumentation - ATMs, Industrial IoT Platforms, POS Terminals, Uninterruptible Power Supply (UPS) and Vending Machines, Medical - Analysis Equipment and Mass Spectrometers, Networking and Telecom - Fax Machines, Modems, 5G Wireless, Telephones

Configuration: 1x1

Mating Cycles: 750 Cycles

Mounting Type: PCB Mount

Tab Direction: Tab Up

Current Rating: 1.5 A

Mounting Angle: Vertical

Mounting Style: Through Hole

Voltage Rating: 125 VAC

Contact Plating: Gold

LED L / R Color: Green / Yellow

Number of Ports: 1 Port

Contact Material: Phosphor Bronze

Termination Style: Solder

Mounting Direction: Vertical

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 3, Cat 5

Insulation Resistance: 500 MOhms

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C

Number of Positions / Contacts per Port: 8P8C
