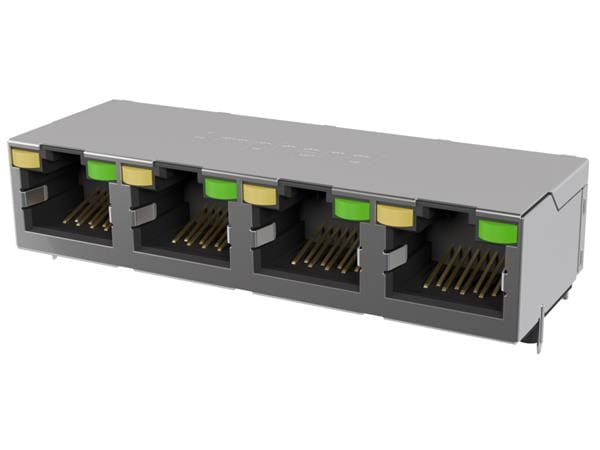

Amphenol Commercial Products RJE584886441 Connectors Standard Profile CAT5E RJ45 - 4 Port with Yellow LED, Shielded without EMI Tabs

Color: Black

Gender: Jack (Female)

Shielding: Shielded

USOC Codes: RJ45

Configuration: 1x4

Tab Direction: Tab Up

Current Rating: 1.25 A

Mounting Angle: Right Angle

Mounting Style: PCB Mount

Voltage Rating: 125 VAC

Contact Plating: Gold

LED L / R Color: Green / Yellow

Number of Ports: 4

Contact Material: Phosphor Bronze

Termination Style: Solder

Mounting Direction: Right Angle

Number of Contacts: 8 Contact

Dielectric Strength: 1 kVAC

Flammability Rating: UL 94 V-0

Number of Positions: 8 Position

Performance Category: Cat 5e

Insulation Resistance: 500 MOhms

Operating Temperature Range: - 40 C to + 85 C

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Number of Positions / Contacts per Port: 8P8C
