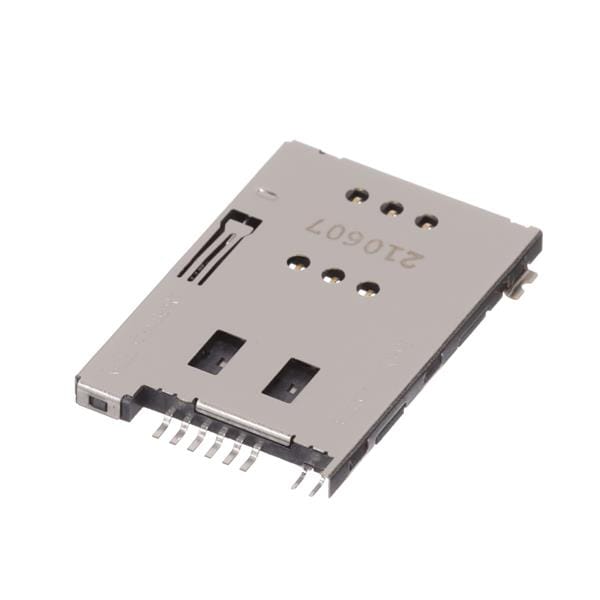

Amphenol Commercial Products 1010030682 Card Connectors Mini Sim Card 6 Pin Connector PCB

Pitch: 2.54 mm

Height: 1.95 mm

Length: 27.85 mm

Card Type: SIM

Unit Weight: 2.100 g

Mating Cycles: 5000

Mounting Type: Top

Current Rating: 500 mA

Mounting Style: PCB Mount

Number of Rows: 1 Row

Voltage Rating: 5 V

Contact Plating: Gold

Contact Material: Copper Alloy

Housing Material: Thermoplastic (TP)

Termination Style: SMD/SMT

Number of Contacts: 8 Contact

Flammability Rating: UL 94 V-0

Insulation Resistance: 500 MOhms

Insertion - Extraction Style: Push-Push

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 55 C
