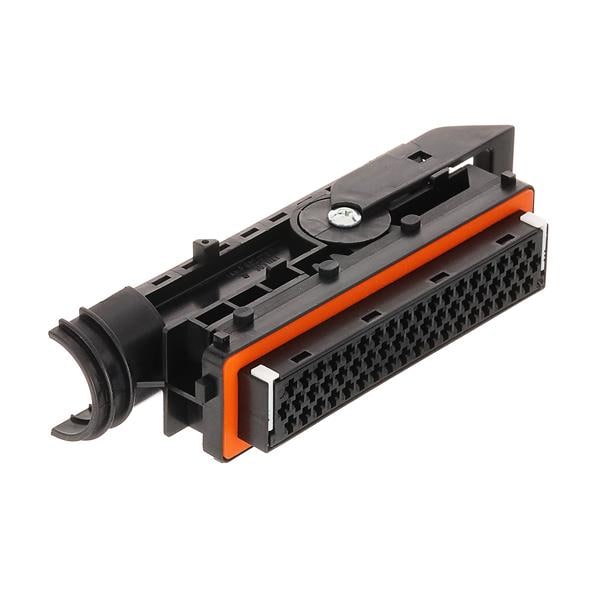

AMP Connectors - TE Connectivity 963041-1 Housings 55P JUN-POW-TIM GEH

Color: Black

Pitch: 5 mm (0.197 in)

Width: 46.8 mm

Gender: Receptacle (Female)

Height: 36 mm

Length: 143.26 mm

Application: Wire to Board/Device

Row Spacing: 5 mm

Unit Weight: 93.750 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 3 Row

Voltage Rating: 48 VDC

Wire Gauge Max: 13 AWG

Housing Material: Polybutylene Terephthalate (PBT)

Wire Gauge Range: 13 AWG

Lock Mate Feature: On the terminal

Ingress Protection: IP6K9K

Number of Positions: 55 Position

Description/Function: Junior Power Timer, Housing for Female Terminals

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
