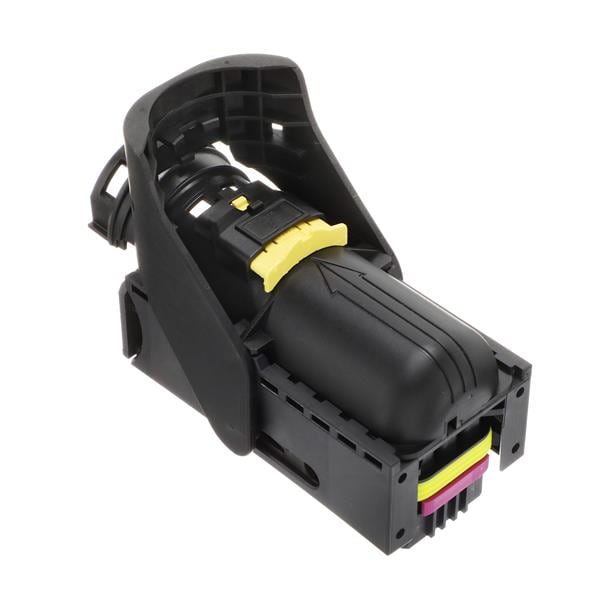

AMP Connectors - TE Connectivity 284743-1 Accessories 94 POS CONN+COVER AND CPS KIT

Color: Black

Pitch: 2.54 mm (0.1 in)

Width: 46 mm

Gender: Receptacle (Female)

Height: 74.3 mm

Length: 97 mm

Application: Wire to Board/Device

Row Spacing: 5 mm

Unit Weight: 88.800 g

Contact Gender: Without Socket Contacts

Mounting Angle: Right Angle

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 4 Row

Voltage Rating: 24 VDC

Housing Material: Polyamide (PA)

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Number of Positions: 94 Position

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
