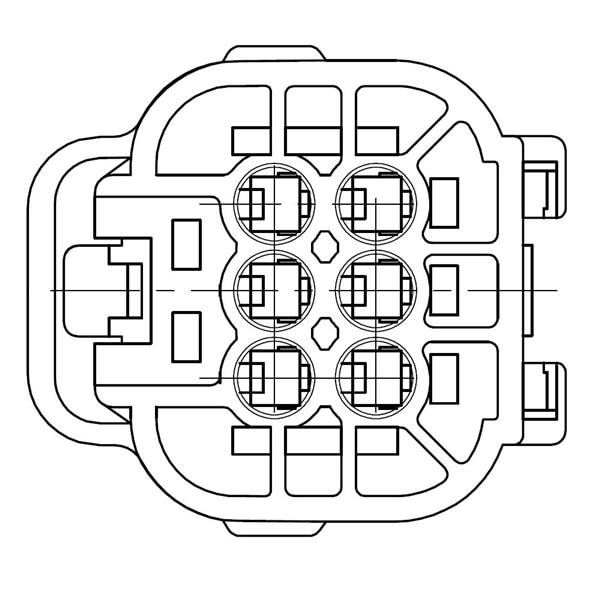

AMP Connectors - TE Connectivity 2822346-1 Housings ECONO-J MK-2 PLUG ASSY 6P

Color: Black

Pitch: 4.8 mm (0.189 in)

Width: 29.3 mm

Gender: Plug (Male)

Height: 27.6 mm

Length: 25.4 mm

Application: Wire to Wire

Row Spacing: 5.6 mm

Unit Weight: 9.300 g

Contact Type: Socket

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 2 Row

Housing Material: Polybutylene Terephthalate (PBT)

Lock Mate Feature: Integrated in Housing

Termination Style: Crimp

Flammability Rating: UL 94 V-2

Number of Positions: 6 Position

Description/Function: Econoseal J-070, Automotive Seals & Cavity Plugs

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 30 C
