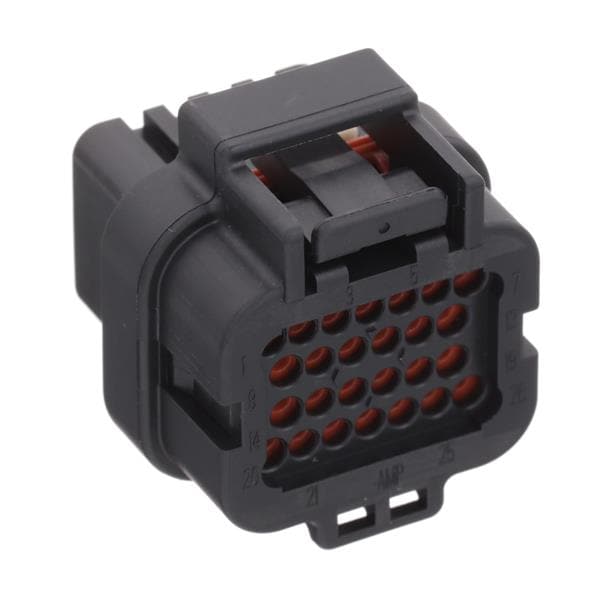

AMP Connectors - TE Connectivity 1473416-2 Plug Housing SUPER SEAL 26 POS PLUG ASSY

Color: Black

Pitch: 3 mm (0.118 in)

Width: 32.2 mm

Gender: Plug (Male)

Height: 34.55 mm

Length: 32.15 mm

Application: Wire to Board/Device

Row Spacing: 4.24 mm

Unit Weight: 18.870 g

Contact Gender: Without Socket Contacts

Mounting Angle: Straight

Mounting Style: Cable Mount / Free Hanging

Number of Rows: 4 Row

Voltage Rating: 250 VDC

Housing Material: Polybutylene Terephthalate (PBT)

Locking Mechanism: Integrated in Housing

Termination Style: Crimp

Flammability Rating: UL 94 V-2

Number of Positions: 26 Position

Attachment Hole Diameter: 1 mm

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
