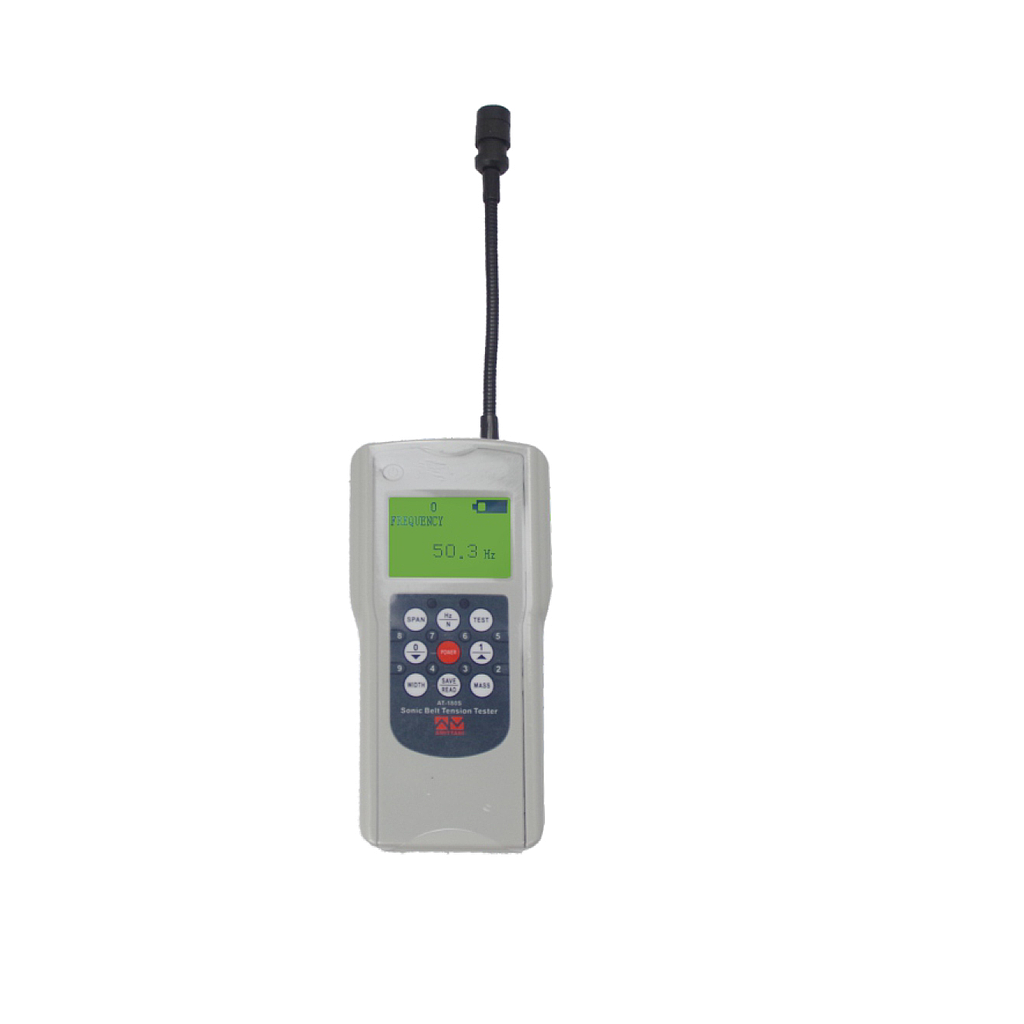

Amittari AT-180S Sonic belt tension tester (10-680Hz)

Measuring range: 10~680Hz

Belt free strand length: Up to 999.9 mm

Belt width: Up to 999.9 mm/R

Belt mass: Up to 999.9 g/m

Precision: ±1Hz (<100Hz AND ±1% >100Hz)

Digital sampling accuracy: <1%

Display accuracy: ±1Hz

Overall accuracy: <5%

Operating temperature: +10 to +50°C

Transport temperature: -5 to +70°C

Display: LCD

Measurement unit: Hz/N

Power supply: 4×1.5V AAA

Housing: Plastic (ABS)

Dimensions: 140×72×34 mm

Package size: 248×206×52 mm

Standard Accessories: Main Unit (one), Operating Instructions (one copy), Portable suitcase (one)
