Measuring Range: 0~1250 um; 0~50mil (other range may be specified)
Resolution: 0.1 um (0~99.9um)/1 um (over 100um)
Accuracy:: 1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
Minimum Measurement Area: 6 mm
Minimal Surface: F Type convex1.5 mm / concave 25 mm; NF Type convex 3 mm / concave 50mm
Operating Condition: Temp: 0~50°C / Humidity: <95%
Size: 120x63x25 mm
Power Supply: 2x1.5vAAA Um-4 Battery
Weight: 90 g (Not including batteries)
Product Accessories
Standard Accessories:
Main Unit
Calibration Foils
Substrate ( Iron )
Substrate ( Aluminium )
Carrying Case
Operation Manual
Optional Accessories:
USB data output
Bluetooth data output

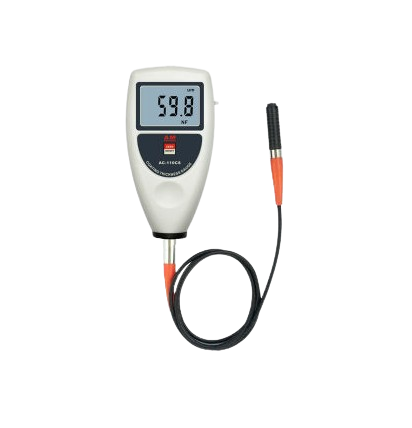

The Basic Type Coating Thickness Gauge AC-110 Series have two types: Type C ( Integral Type ), Type CS ( Separate Type ); Suitable for automotive, paint layer coating thickness measurement; Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements. Separate Type can provide several type probe, measure can be more flexibility. It is a kind of portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement. Not only can be usedin the laboratory, also can be used in the engineering field. Through the use of different measuring head, but also can meet the needs of a variety of measurement. Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field. Is the material protection professional.
