Maximum load value: 3N, 0.3kg, 0.65Lb
Load division value: 0.001N, 0.001kg, 0.001Lb
Sensor structure: Inner sensor
Accuracy: ±1％
Power: 2 AAAbatteries 1.5V
Working temperature: 5℃～35℃
Transport temperature: -10℃～60℃
Relative humidity: 15％～80％RH
Working conditions: No vibration source around and no corrosive environment.
Dimensions: 124*60*31(mm)
Net weight: ~0.4Kg
Comes with:

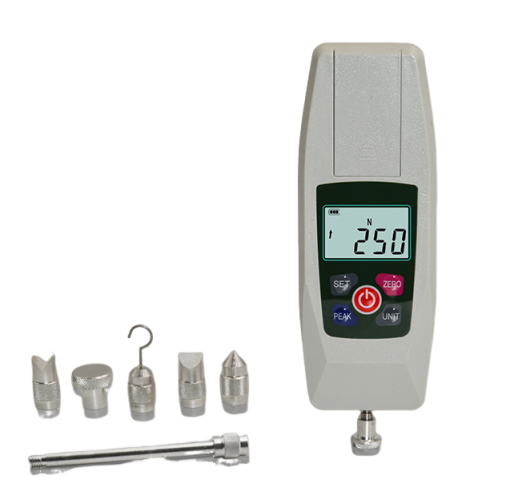

Digital push-pull force gauge: 1 sets
1.5V AAA battery: 2 pcs
Instructions: 1
Certificate of conformity and warranty card: 1
Fixture head: 6pcs
Socket head cap screws M4*8: 4pcs
Socket head cap screws M4*10: 4pcs
Spring pad Φ4: 8pcs
Nuts M6: 2pcs
Features:
High precision and high resolution;
Three measurement mode for selection（Real time、Peak、First peak）；
N(Newton),Kg (Kilogram) , Lb (Pound) and Oz(Ounce) four units for selection and conversion.
Setting function of gravity acceleration----User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.
Upper and lower limits can be set for statistic analysis. The buzzer will alarm if exceeding the limits.
Minimum force value shielding function: the data within the set minimum range can be shielded;
Automatic shutdown function: The automatic shutdown time can be set, and the automatic shutdown can achieve a point saving effect when there is no operation for a long time.
Power: 2pcsAAAbattery (1.5V*2)
Automatic backlight, buzzer alarm function;
Datasheet
