ALIYIQI AMST-B Magnetic pole pen (±5mT(50Gs), 10 hours)

sensitivity: ±5mT(50Gs)

display: 2 LED lights (red = N pole, green = S pole)

Battery: 2 pcs 1.5V AAA battery

Usage time: More than 10 hours

Service temperature: -20℃～+80℃

Storage temperature: -40℃～+150℃

Size: About 156 × 24 × 20mm

weight: About 55g

Comes with:

Magnetic pole pen: 1

1.5V AAA battery: 2

an instruction manual: 1

warranty card: 1

Applications:

Determination and identification of permanent and electromagnet poles.

Magnetization polarity check.

Coil test.

Auxiliary functions: motor assembly, magnetic clamping device assembly, error assembly analysis and multi-level magnetic field quality control, etc.

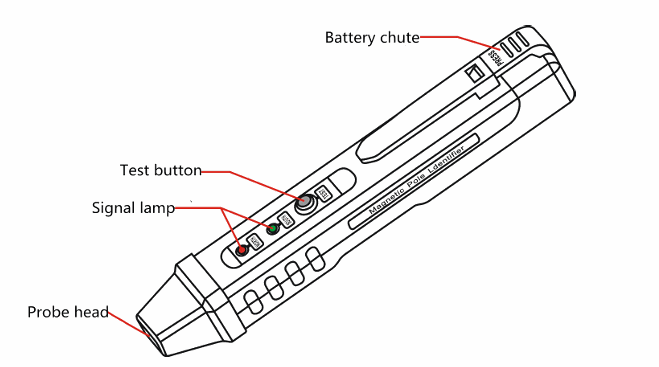

Appearance structure

Datasheet
