ALIYIQI AMST-5 Tesla/Gauss Meter (200 mT(2000Gs), 2000 mT(20000Gs))

Range: 200 mT(2000Gs), 2000 mT(20000Gs)

Load divison value: 0.01 mT (0.1 G), 0.1 mT (1G)

Accuracy (level 1): ±1.0%

Accuracy (level 2): ±2.0%

Accuracy (level 5): ±2.0%(0...1000 mT),±5.0%(1000 mT...2400mT)

Power supply: 1 pcs 9 VBattery

Working environment: 0℃~50℃,20~85%R·H, No condensation

Storage environment: -20℃~70℃,85%R·H,No condensation

Instrument dimensions: 160 mm×75 mm×34mm

Weight of instrument: About 260g (including batteries and conductors)

Hall probe: Standard radial Hall probe, wire length about 1 meter

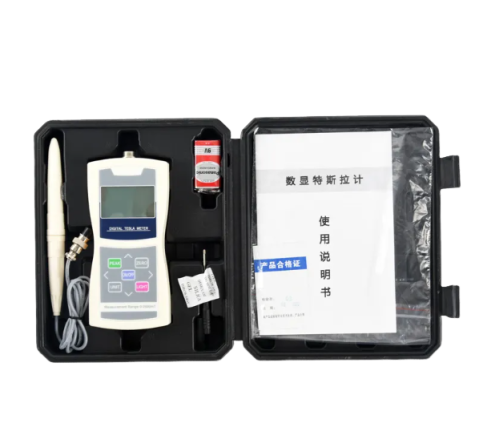

Comes with:

Tesla/Gauss meter: 1

Radial Hall probe: 1

9V dry battery: 1

Instructions: 1

Warranty card: 1

desiccant: 1

Features:

Three types of accuracy: Level 1, Level 2 and Level 5 for different magnetic field measurement situations.

Two magnetic field units: mT (mtr), Gs (Gauss),1 mT=10Gs

Rangeof measurements :0-2500 mT (25000Gs).

with automatic range switching, one-click zero, maximum value retention function.

display backlight ,5 minutes automatic shutdown function.

Lowpowerconsumption, portable.

Multiple Hall probes available.

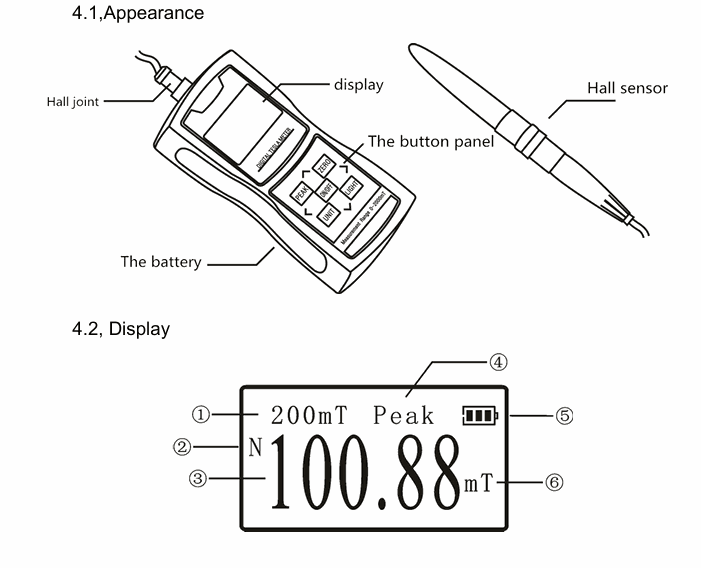

Appearance structure

Datasheet
