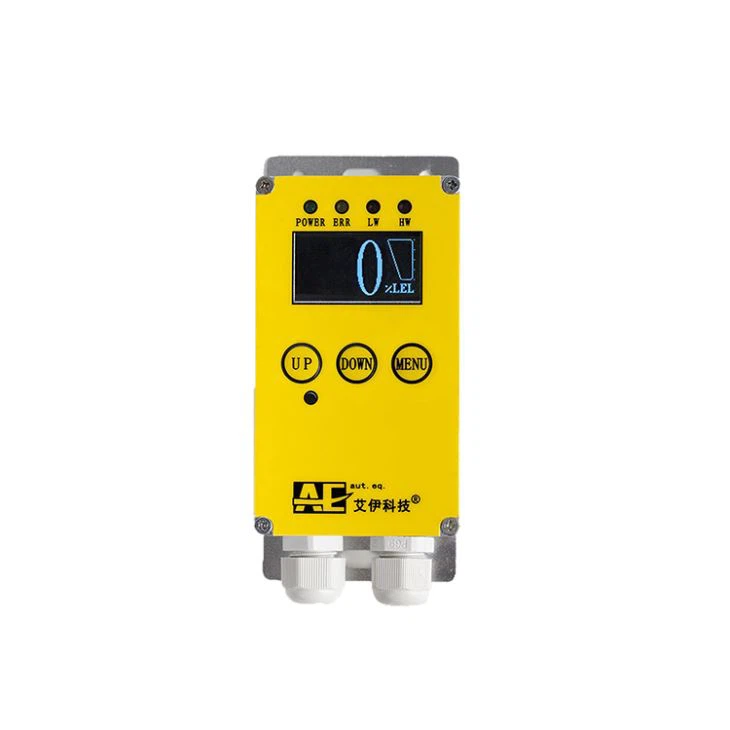

AIYI JUDD Single Control Panel

Function

Channels: 1–8

Suitable Detector: Detector with 4–20 mA only

Electric

Power Supply: 220 VAC

Power Consumption: Each channel ≤ 1 W

Signal Input: 4–20 mA

Signal Output: 4–20 mA

Wiring: Three-wire

Suitable Cable: RVVP 3×1.5 mm²

Relay Output: 2 passive relays (250 VAC / 5 A 30 VDC / 5 A)

Display & Operation

Display: OLED screen, resolution 128×64

Indicator Light: Power, fault, alarm-1, alarm-2

Operation Method: Button

Environment

Operating Temperature: 0 °C ~ 40 °C

Operating Humidity: 10 ~ 95 % RH (non-condensing)

Operating Pressure: 80–120 kPa

Structure

Body Material: Aluminum alloy (for single channel) / Carbon steel with electrostatic spraying (for multi-channel)

Weight: About 0.24 kg (single channel)

Dimensions: 145×65×43 mm (H×W×D) single channel / 467×359×99 mm (H×W×D) multi channels

Certificate

SIL: SIL2
