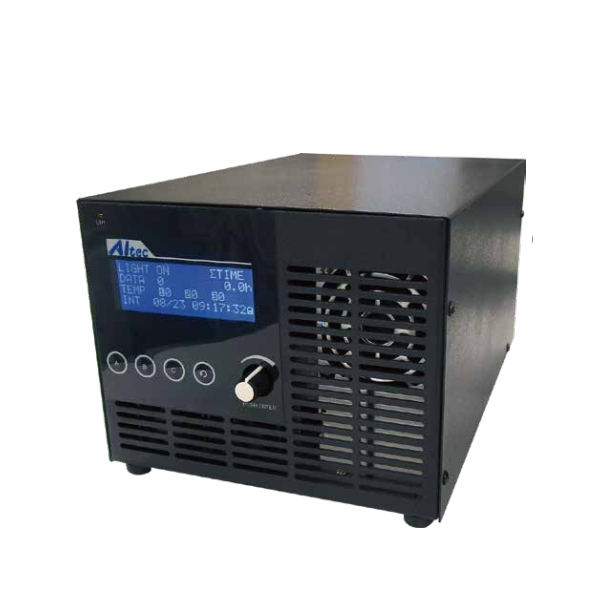

Aitec LPDCJ1-48601W-R4 Constant-current Lighting Power Supply (1CH, 480W)

Output control method: Constant-current control

Dimming adjustment method: Digital setting

Number of outputs: 1CH

Maximum output capacity: 480W

Output voltage: DC 48V (Adjusting depending on lighting)

Output connector: 2×37-pin metal connectors

Rated power voltage: AC 100V~240V (50/60Hz)

External control:

+ Parallel communication : DSUB15P connector

+ RS-232C communication : DSUB9P connector

+ LAN communication : RJ-45

External dimming:

+ Parallel communication : only entire

+ RS-232C communication : entire and distribution control

+ LAN communication : entire and distribution control

External ON/OFF control: Photo coupler input within parallel communication ,RS-232C, USB or command control by Lan communication

Cooling system: Fan cooling

Main body dimensions WxDxH [mm]: 180×270×140

Weight: 5.4kg

CE marking: Safety standards: Compliant with EN61010-1

EEMC standard：EN6100-3-2　EN61000-3-3　EN61000-6-2　EN61000-6-4 applicable

Datasheet
