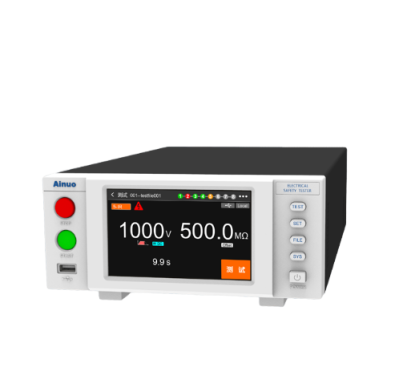

Ainuo ANBTS7101(F) Insulation Resistance Tester (100GΩ, 1CH)

Output channel: Single channel (HV1, HV2 (return))

Output voltage: Range: (25-1,000)VDC, resolution: 1V, Error ±(1%xSet value+2V)); [optional 2000V output]

Insulation resistance measurement:

25V-100V: 0.002MΩ-499.9MΩ,±(5%xReading value±2 digits)

101V-499V:0.010MΩ-199.9MΩ,±(2%xReading value±2 digits); 200.0MΩ-2.000GΩ: ±(5%xReading value±2 digits)

500V-1,000V: 0.020MΩ-999.9MΩ,±(2%xReading value±2 digits); 1.000GΩ-9.999GΩ:±(5%xReading value±2 digits); 10.00GΩ-49.99GΩ: ±(15%xReading value); 50.00GΩ-99.99GΩ: ±(20%xReading value)

Test time: Range: 0, (0.5-999.9)s, 0 represents infinite duration, resolution: 0.1s, accuracy: ±(0.1%xSet value+2 digits)

Ramp up time: Range: 0, (0.1-999.9)s, 0 represents ramp-up disabled, resolution: 0.1s, accuracy: ±(0.1%xSet value+2 digits)

Ramp down time: ange: 0, (1-999.9)s, 0 represents ramp-down disabled, resolution: 0.1s, accuracy: ±(0.1%xSet value+2 digits)

Resistance upper/lower limit setting: Range: 0.002MΩ-99.99GΩ, 0 indicates no upper limit setting

Charge and discharge modes: Maximum constant current charge 50mA, maximum constant current discharge 30mA and discharge residual voltage monitoring function.

Power supply: AC220V±10%，50Hz/60Hz

Display and operate: 5-inch LCD color display, key and touch screen operation; RS232C, LAN, PLC and USB (storage) interfaces

Dimensions (WxHxD mm): 213x88x360
