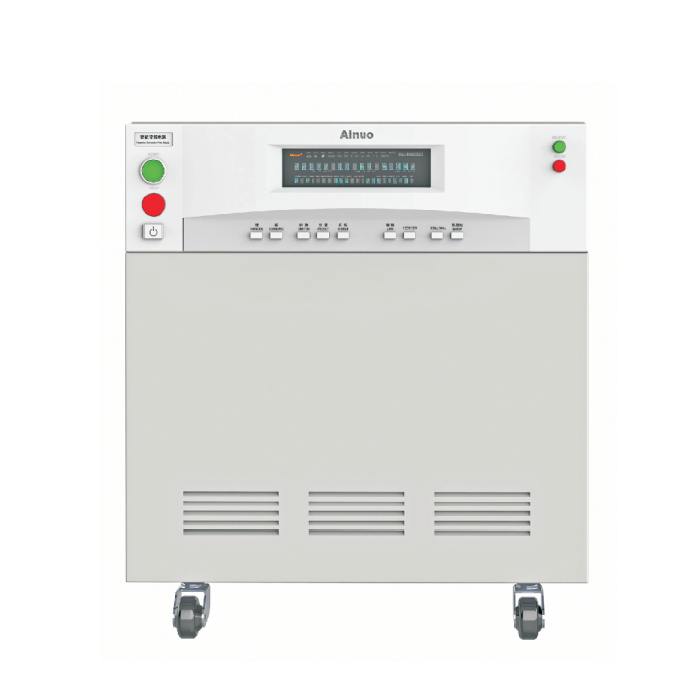

Ainuo AN97005H(F) Frequency Conversion Power Supply

Output capacity: 5KVA

Output Current (220V): 22.8A

Input power: Single phase 200V±15%

Output phase: Single Phase

Output voltage: Auto:(Low gear)1~150.0V,(High gear)150.1~300.0V Hold:(high gear)1~300V

Output frequency: 45~65Hz continuous,adjustable

Frequency stability: 0.1%

Voltage stability: ≤1%

Transient recover time: 20ms

Over current protection: 1.05 rate, 1.1 rated

Protection mode: Short-circuit,overload and power device overheat protection

Display: VFD

Communication: Standard:RS232,Optional:RS485,Remote Control

Dimension: 483*750*400

Weight: 80 kg
