1) AC Hipot test
Booster rated output capacity: 500VA（5000V/100mA）
Booster maximum short-circuit current: >200mA
Output waveform: Sine wave
Frequency setting: 50Hz/60Hz
Current upper-limit: 0.10～99.99mA
Current lower-limit: 0.00～10.00mA
Time setting: 1～999s
2)Insulation Resistance test
Rated output capacity: 2VA（1000V/2mA）
Output voltage setting: DC 500V or 1000V
Resistance upper-limit range: 0.0～99.9 MΩ，100～2000MΩ
Resistance lower-limit range: 0.3～99.9 MΩ, 100～2000MΩ
Insulation resistance measurement: 0.0～99.9 MΩ, 100～2000 MΩ
3) Ground Bond Resistance test
Output current setting: 3～30A
Current frequency setting: Sine waveform 50Hz/60Hz
Dimension: 426(W)x 178(H)x 600(D)
Gross weight: 50 kg

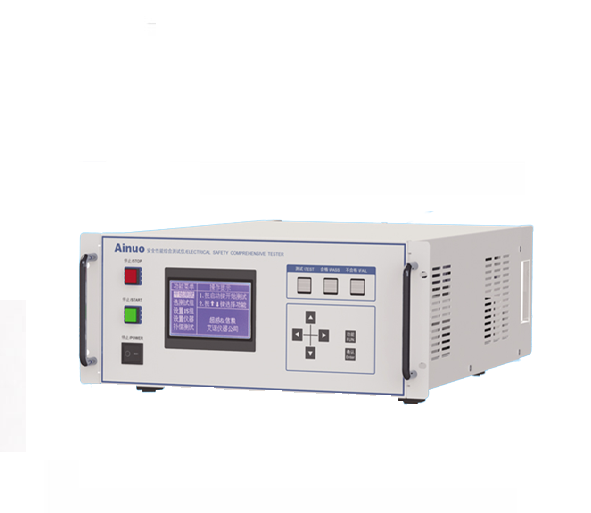

Product Detail
Main features
* Fullfill Latest international standard:500VA AC Hipot capacity(AC 5KV/100mA),short-circuit output current up to 200mA,Built-in optional leakage current test network MD card,meeting requirements of different industrial standards,Maximum test current of ground bond is up to 64A,optionalground bond resistance or voltagte test mode. Comply with CCC,IEC,EN,VDE,BS,UL,JIS standard requirements.
*Up to 6 functions:AC Hipot,insulation resistance,Ground Bond,leakage current,runing power,low-voltage start,flexibly configured for different models.
* Intelligent operation:15 groups of test memories,7-step programming for each guoup,button start.External programmable power supply,auto-comfiguration of power voltage/frequency for the DUT(Device under test).
*Auto control:standard RS232,Optional RS485/GPIB/LAN interface,AN97 power supply interface,Remote interface,easily compose automation system.
* Infomation management:optional software(ESRS),realizing test process and data management,improving product quality and production management level.
*Simplified operation:LED backlit screen display,menu operation,Chinese/English,socket test fixture.
Order information and extended functions
* AN694A(F):6 in 1,external AN97 series power supply is required for leakage/power/start test,Safety capacity 500VA
*AN9640B(F):5 in 1,external AN97 series power supply is required for leakage,power test.
eakage/power/start test,Safety capacity 500VA
*AN9640B(F):5 in 1,external AN97 series power supply is required for leakage,power test.
Spec.
<t
|
AC Hipot test |
|||
|
Booster rated output capacity |
AN9640A(F) |
500VA（5000V/100mA）1 |
|
|
AN9640B(F) |
100VA（5000V/20mA） |
||
|
Booster maximum short-circuit current |
>200mA |
||
|
Output waveform |
Sine wave, <3%（pure resistance，5000V/1mA），<3%（From empty load to full load） |
||
|
distortion and regulation |
|||
|
Output voltage setting |
Range |
500～5000V |
|
|
Resolution |
5V |
||
|
Accuracy |
±（3%×setting+10V） |
||
|
Frequency setting |
Range |
50Hz/60Hz |
|
|
Accuracy |
±0.1%×setting |
||
|
Alarming limits setting |
Current upper-limit |
0.10～99.99mA(20.00mA for AN9640B/C(F)) |
|
|
Current lower-limit |
0.00～10.00mA |
||
|
Compensation current setting |
Range |
0.00～10.00mA, automatic testing, compensation can be set to ON/OFF |
|
|
Time setting |
Range |
1～999s |
|
|
Ramp up time range |
1～100s |
||
|
Accuracy |
±（0.1%×setting+1count） |
||
|
Breakdown current alarm |
Range |
0.10～99.99mA(20.00mA for AN9640B/C(F)) |
|
|
Accuracy |
±（3%×reading+3counts） |
||
|
Insulation Resistance test |
|||
|
Rated output capacity |
2VA（1000V/2mA） |
||
|
Output voltage regulation |
<3%（From no load to full load） |
||
|
Output voltage ripple |
<1% |
||
|
Output voltage setting |
Range |
DC 500Vor1000V |
|
|
Accuracy |
±（3%×setting+3counts） |
||
|
Alarming limits setting |
Resistance upper-limit range |
0.0～99.9 MΩ，100～2000MΩ（If upper-limit is set to 0, it will not make adjudgment for upper limit ） |
|
|
Resistance lower-limit range |
0.3～99.9 MΩ, 100～2000MΩ |
||
|
Time setting |
Range |
1～999s |
|
|
Accuracy |
±（0.1%×setting+1count） |
||
|
Insulation resistance measurement |
Range |
0.0～99.9 MΩ, 100～2000 MΩ |
|
|
Accuracy |
≤200MΩ: ±（3%×reading+3counts） |
||
|
Remarks：Except 500V and 1000V voltage points, other voltage accuracy are all 10%. Insulation resistance accuracy is under temperature 0～40℃ ， humidity 40℃/（20～75）% RH，otherwise the accuracy will change. |
|||
|
Ground Bond Resistance test |
|||
|
No load output voltage |
<12v span=""> |
||
|
Output current setting |
Range |
3～30A |
|
|
Accuracy |
±（3%×setting+0.2A） |
||
|
Current frequency setting |
Range |
Sine waveform 50Hz/60Hz |
|
|
Accuracy |
±0.1%×setting |
||
|
Test time setting |
Range |
1～999s |
|
|
Accuracy |
±（0.1%×setting+1count） |
||
|
Result display mode |
Ground resistance or voltage |
||
|
Ground resistance display mode： |
|||
|
Alarming limits setting |
Resistance upper-limit range |
3A≤output current≤10A:10～600 mΩ |
|
