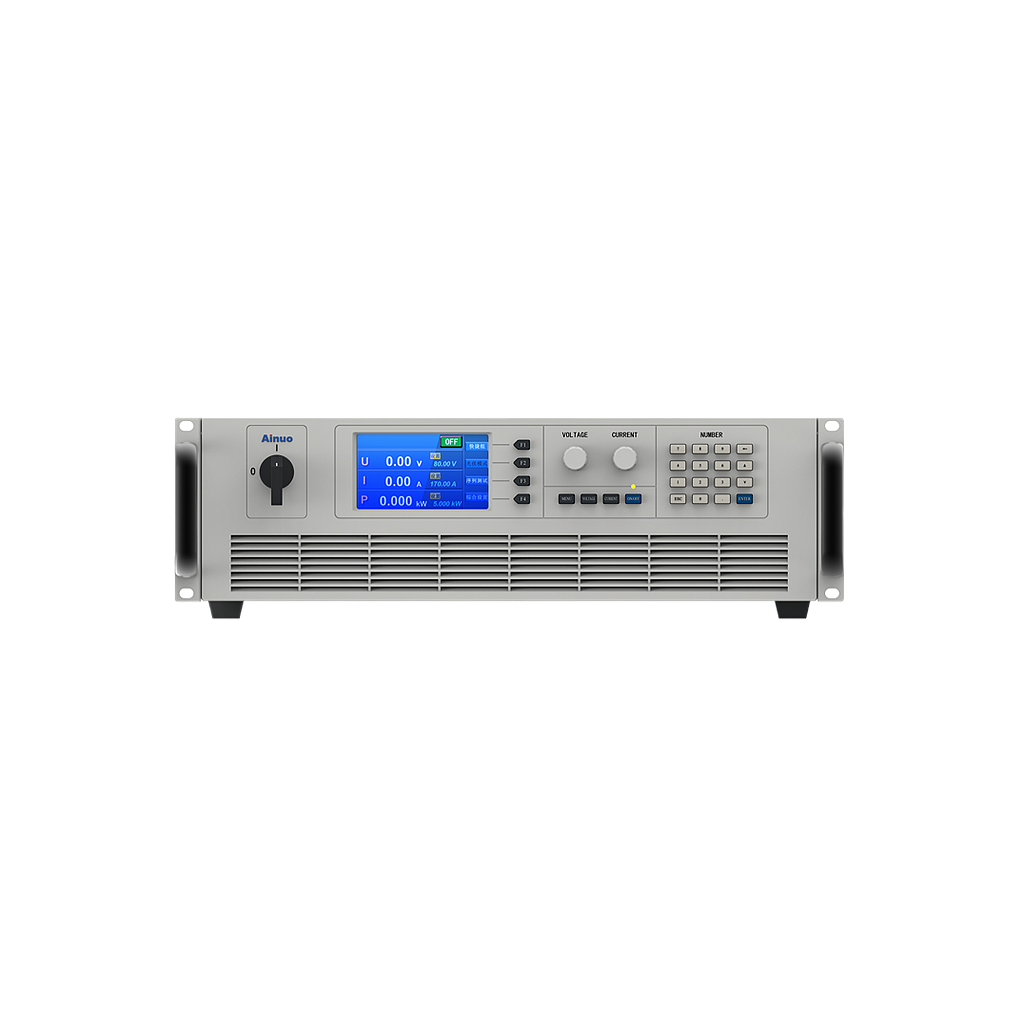

Ainuo AN5380-170S(F) Wide Range Programmable DC Power Supply (80V, 170A, 3kW)

Input

Voltage: Single phase + PE, 198V–242VAC

Frequency: 47–63Hz

Output

Voltage: 0–80V

Current: 0–170A

Power: 0–3kW

Display mode: 4.3-inch color LCD

Measurement error (readback accuracy)

Voltage: ≤0.05% Umax, resolution 0.01V

Current: ≤0.1% Imax, resolution 0.01A (>1000A, 0.1A)

Power: ≤1% Pmax, resolution 0.001kW (>100kW, 0.01kW)

Ripple and Noise

Vrms: 30mV

Vpp (20Hz–20MHz): 200mV

Load effect

Voltage: ≤0.01% Umax

Current: ≤0.05% Imax

Power effect

Voltage: ≤0.01% Umax

Current: ≤0.01% Imax

Transient response time: ≤2ms

Maximum lead drop compensation: 6.5V

Communication control interface:

Standard: RS232, RS485, CAN, and LAN

Optional: GPIB, analog port, USB

Protection functions:

Input undervoltage protection, short-circuit protection, reverse connection protection, output overvoltage and current-limiting protection, overheating protection, S-terminal compensation function

Parallel connection function:

Supports multiple units for parallel output to expand power/current range

Working environment: Temperature 0–40°C; Humidity ≤90% RH

Dimensions (W×H×D): 440 × 133 × 350 mm

Weight: 17 kg
