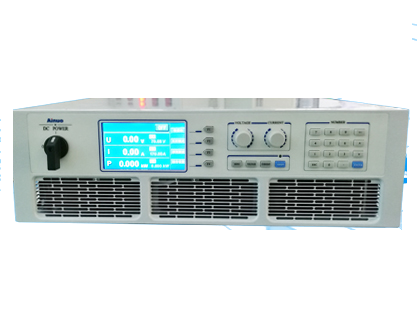

Ainuo AN531000-30(F) Programmable DC testing power (1000V, 30A, 10kW)

Input: 3-phase 3-wire +PE，340V~420VAC，47-63Hz

Output: Voltage 0～1000V

Current 0～30A

Power 0～10kW

Testing accuracy: Voltage ≤0.15%Umax，Resolution 0.01V（＞1000V，0.1V）

Current ≤0.3%Imax，Resolution 0.01A

Power ≤1%Pmax，Resolution 0.001kW（＞100kW，0.01kW）

Ripple and Noise

20Hz~20MHz

Vrms 350mV

Vpp 1600mV

Load effect: Voltage≤0.05%Umax，Current≤0.15%Imax

Source effect: Voltage≤0.02%Umax，Current≤0.05%Imax

Transient response time: ≤2ms

Rise time: 100%50ms（10%-90%）

Max output voltage drop compensation: 25V

Environment: Temperature：0～40℃；Humidity：20～90%RH

Dimension W×H×D（mm）: 440×133×600

Weight: 27kg

Remark: The current range of models above 1000V can be customized for 40A
