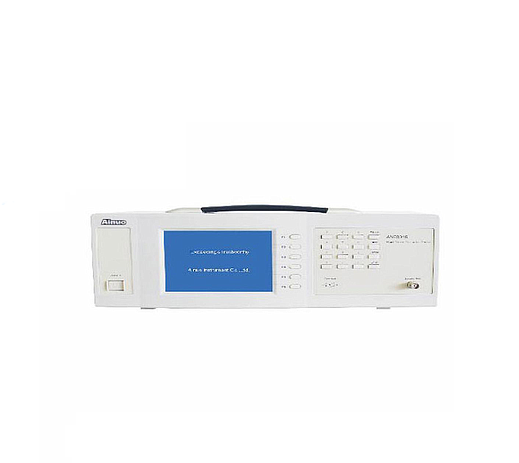

Ainuo AN20015(F) C/DC Hipot tester calibrator
1) AC/DC voltage measurement
Measurement range: 0.500KV～15.000KV, ±0.5%
Input impedance: 500MΩ
2) AC/DC current measurement
Measurement range: 0.5000mA～200.0mA,±0.5%
3) AC voltage distortion
Voltage input range: 3KV～15.00KV, Absolute tolerance ±1%
4) DC voltage ripple
Voltage input range: 3KV～15.00KV, Absolute tolerance ±1%
Interface: RS232
Dimension: 400×156×310mm
Datasheets
Product Detail
Main features
* Compliant with "JJG795-2004 Withstanding Voltage Tester Calibration Regulations"
* Built-in timer,maximum hold current,ground bond/floating ground switch for simulating hipto testers
* Security design,high voltage input terminal on rear panel,high insulation resistance protection
* 320*240 blue LCD screen,menu type operation,simple and convenient
* Computer control software for calibration system,convenient to store data and print certificate.
Spec.
|
Model |
AN20015(F) |
|
|
AC/DC voltage measurement |
Measurement range |
0.500KV～15.000KV |
|
Accuracy |
±(0.5%×reading+2 counts) |
|
|
Input impedance |
500MΩ |
|
|
AC/DC current measurement |
Measurement range |
0.5000mA～200.0mA |
|
Accuracy |
±(0.5%×readig+2 counts) |
|
|
AC voltage distortion |
Voltage input range |
3KV～15.00KV |
|
Range |
1.00%～10.0% |
|
|
Accuracy |
Absolute tolerance ±1% |
|
|
DC voltage ripple |
Voltage input range |
3KV～15.00KV |
|
Range |
1.00%～10.0% |
|
|
Accuracy |
Absolute tolerance ±1% |
|
|
Voltage |
Measurement range |
0.10s～999.99s |
|
Accuracy |
±(1%+0.2s) |
|
|
Interface |
RS232 |
|
|
Optional accessories |
Resistance box AN200-02(F),AN200-04(F) Software AN20015(F)-soft |
|
|
Operating environment |
23℃±5℃,(45～75) %RH |
|
|
Storage environment |
0℃～40℃,(5～90) %RH |
|
|
Dimension(W×H×D) |
400×156×310mm |
|
