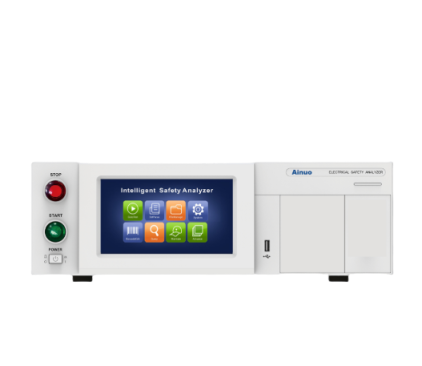

Ainuo AN1635H-10KV(F) Electrical Safety Analyzer (ACW/DCW/IR(CE marking))

AC withstand Voltage (ACW): 10kVac/20mA

DC withstand Voltage (DCW): 10kVdc/20mA

Insulation Resistance (IR): 10kVdc/50GΩ

DC Ground Bond Resistance (DCGB): Optional 40A/60A/100A DCGB card

Multiple Cards: Optional 6-channel multi-channel scanning card

Operation Interface: Android system, 7" torch screen, RS232LANWIFIPLCUSB interface

Informatization: Local store, data filter and export; barcode recognition and automatic program matching, MES system integration; optional: HDMI interface, supporting external LCD display, keyboard/mouse

Dimensions (W*H*D mm): 426*132*520

Images for illustrative purposes only

Datasheet
