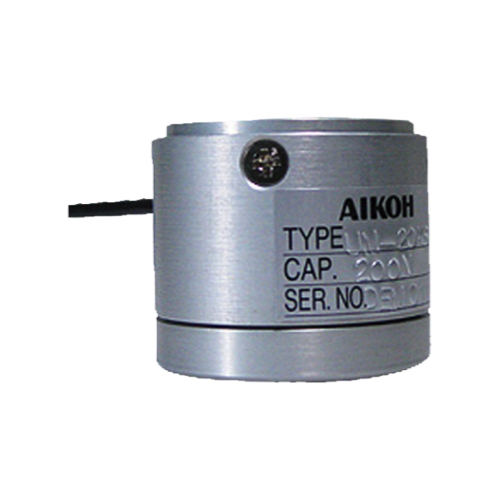

Rated capacity: 200N
Rated output: 2mV/V±1％
Nonlinearity: 0.1％R.O.
Hysteresis: 0.1％R.O.
Repeatability: 0.1％R.O.
Recommended applied voltage: 10V
Allowable applied voltage: 15V
Input/output resistance: 350Ω±2％
Insulation resistance: 1000 MΩ or over
Temperature compensation range: -10～+70℃
Allowable temperature range: -20～+80℃
Zero point influence by temperature: ±0.01％R.O./℃
Output influence by temperature: ±0.01％R.O./℃
Allowable overload: 150％R.C.
Cable length: 3m
Tip shape: Y terminal
