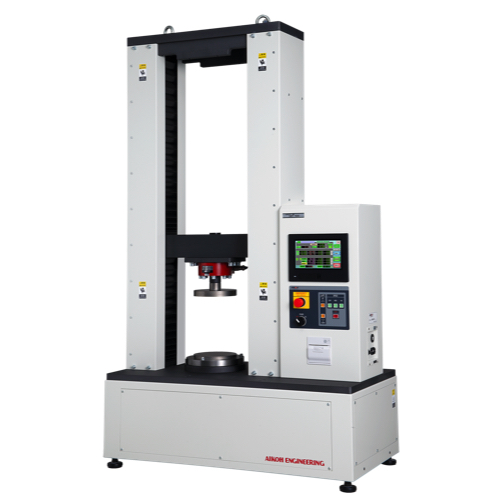

Aikoh SWT-200 Spring Tester (2kN; 0.1N)

Capacity: 2kN

Force Resolution: 0.1N

Measuring range: 0.5% to 95% F.S.( At the time of  Force measurement or take Spring rate)

Force Acuracy: ±0.2% F.S.

Unit of measurment: N (only in JAPAN) At overses it can use unit  kg and lb

Test Speed: 5 to 600 mm/min

Max measurable length: 600mm

length resolution: 0.001mm

Length accuracy: ±0.1mm (with in the range 500mm)

Compression plate diameter: 150mm

Hook for tensil test: 1type

Size: W876×D450×H1426 mm

Weight: Approx. 190kgs

Power Supply: Selectable frorm AC100 to 110V, AC200 to 220V
