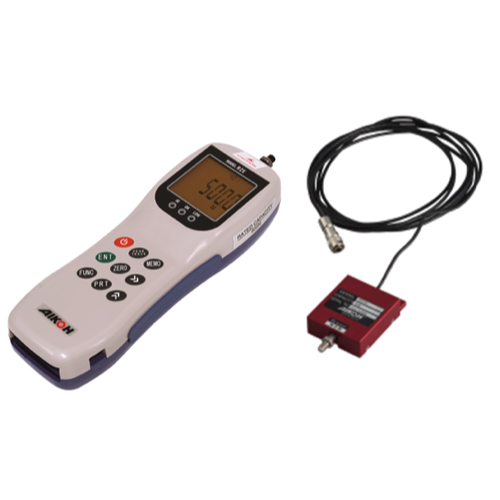

Aikoh RZE-S-8100 Separate Type Digital Force Gauge (1000N (100kgf))

Rated Capacity: 1000N (100kgf)

Minimum Display Unit: 0.1 N (10 gf)

Measurement Units: N, gf, kgf, lb (selectable)

Accuracy: ±0.2% F.S.

Sampling Cycle: Selectable: 1 ms, 5 ms, 16 ms, 50 ms, 125 ms, 250 ms

Display Update Interval: Selectable: 1, 2, 5, 10, 20 times/sec

Output: USB Output; Analog Voltage ±2 V / F.S.; Printer Output; Motorized Stand Control; External Connection Hold

Usable Time: Approximately 30 hours after full charge

Power Supply: Nickel-metal hydride battery; AC Adapter MODEL-780 (AC 100 V – 240 V)

Mass: Approximately 375 g (Main unit only)

Sisplay RZE-S

Load cell MODEL-S8000 series with cell cable (3 m)

Standard attachment

AC adapter MODEL-780(USB cable : includes MODEL-RZ-USB)

Options:

Software RZ-3000

I/O cable RZE-OP-1

I/O cable RZE-OP-2

Mitutoyo DP-1VR printer cable RZE-OP-3

Sanei Electric line thermal printer cable RZE-OP-4

Printer BL2-58SNWJC

jig/fixture, test stand

RZE-OP-1 : For Stand control function only

RZE-OP-2 : For Stand control function, Analog output and Comparator output

Manual
