Z axis (test) specifications
Max. force: 50N (5kgf)
Drive method: AC servo motor
Control motion: Up/down
Drive range: 0～200mm
Force measuring range: 0～50N (0～5kgf)
Force resolution: 0.001N (1mN)
Force accuracy: Depends on the load cell used.
Detector: Rotary encoder
Displacement measuring range: 0～200mm
Displacement resolution: 0.001mm
Display accuracy: ±0.05mm
Test speed range: 0.1～50mm/min
Moving speed range: 1～15mm/sec.
Analog output: ±10 V (force, displacement)
Dimensions: W380×D530×H750mm
Mass: Approx. 25kg
Power supply: AC100V/AC200～230V
X-Y axes (move) specifications
Drive method: Stepping motor
Control motion: X: Right/left, Y: Front/back
Drive range:
X: 0～200mm
Y: 0～200mm
Detector: Rotary encoder
Displacement resolution: 0.01mm
Display accuracy: ±0.1mm
Moving speed range: 1～30mm/sec.
Sample table size: W200×D200mm
Sample carrying mass: Approx. 20kg

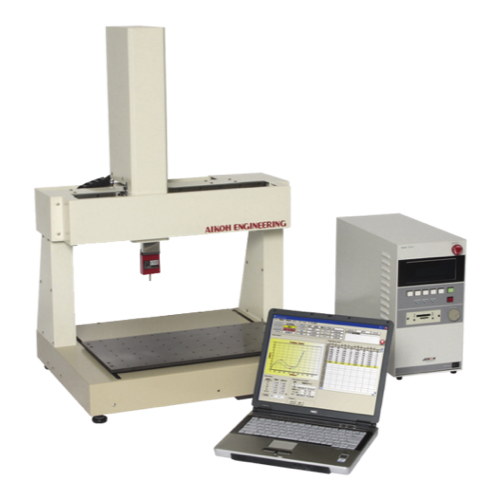

Standard set: Tester, Model 1013Ⅱ, load cell 1 piece, dedicated software
Options: Personal computer(English or Japanese), additional load cell, jig/fixture
