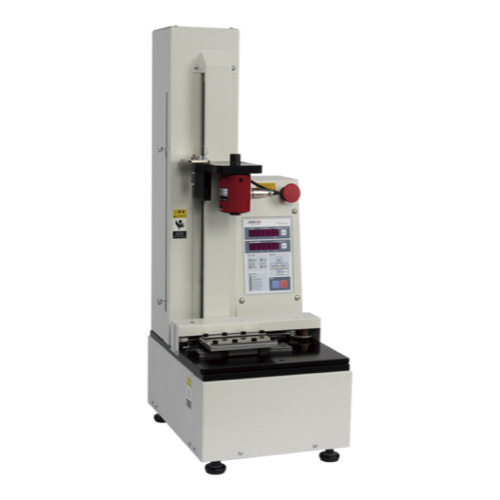

Aikoh FTN4-15A Peeling Tester (50N (5Kgf))

Major application: Peeling test

Max. force: 50N (5Kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: Built in

Controller: Built in

Test speed: 5～1000 mm/min.

Speed changing: Numeric input (Settable on the PC)

Stroke: 100 mm or more (when 90-deg peeling jig installed),390mm (when no jig installed)

Displacement resolution: 0.01 mm

Display accuracy: ±0.5 mm

Table size: W174 x D200 mm

Mass: Approx. 35 kg

Dimensions: W300 x D400 x H830 mm

Power supply: Single phase, 100VAC – 240VAC 3A

Standard set: Tester, load cell 1 piece, software

Options: Peeling jig, additional load cell
