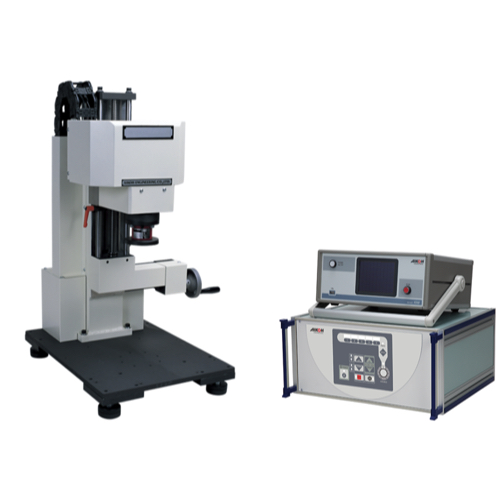

Aikoh 5401K/200 Torque Angle Tester (20N・m (2kgf・m); 0.2～1RPM)

Max. output torque: 20N・m (2kgf・m)

Torque accuracy: 0.01N・m

Torque measuring amplifier: MODEL-1018

Controller: MODEL-4502K

Test speed: 0.2～1RPM

Z-axis stroke: 140mm

Distance between rotation center and column: 120mm

Table size: W350×D320mm

Drive motor: DC brushless motor

Detector: Rotary encoder

Angle setting: 0 – 340 degrees

Display resolution: 0.1deg

Display accuracy: 1deg

Dimensions: W490 x H742 x D480 mm

Stand mass: Approx. 60 kg

Amplifier mass: Approx. 5.2 kg

Power supply: Single phase, 100 VAC, 1 A

Standard set: Tester, torque measuring amplifier MODEL-1018, controller Model 4502K, torque meter 1 piece

Options: Additional torque meter, jig/fixture, software
