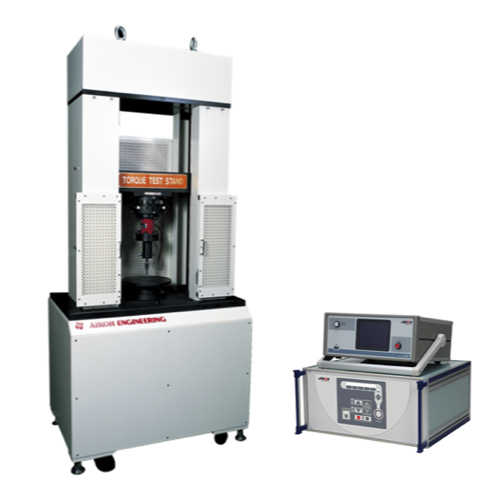

Aikoh 5127K/500 Large Torque Tester (50N・m (5kgf・m); 0.05～2PRM)

Torque capacity: 50N・m (5kgf・m)

Torque accuracy: ±0.5%F.S.

Torque measuring amplifier: MODEL-1018

Controller: MODEL-4502K

Controller: Built in

Load table rotating speed: 0.05～2PRM

Rotating accuracy: ±0.5％

Rotating angle indication, setting: ±0 – 999.9 degrees

Rotary table size: Φ200mm

Drive motor: Servo motor

Detector: Rotary encoder

Display accuracy: 1deg

Amplifier mass: Approx. 5.2 kg

Power supply: 3-phase, 200 VAC, 10 A

Standard set: Tester, torque measuring amplifier MODEL-1018, controller Model 4502K, torque meter 1 piece

Options: Additional torque meter, jig/fixture, software, safety cover
